SSR1PCB Development Board

Product Information

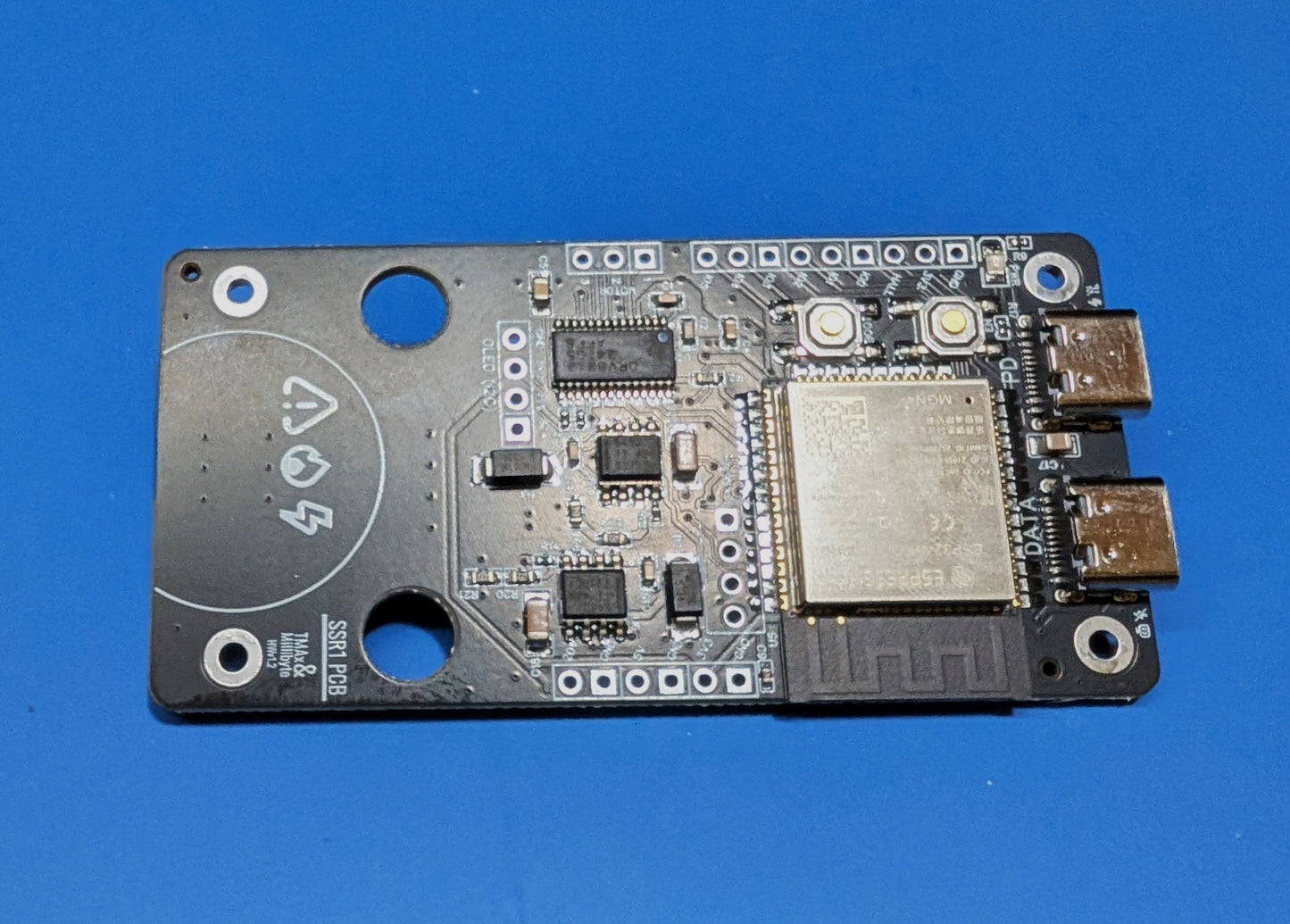

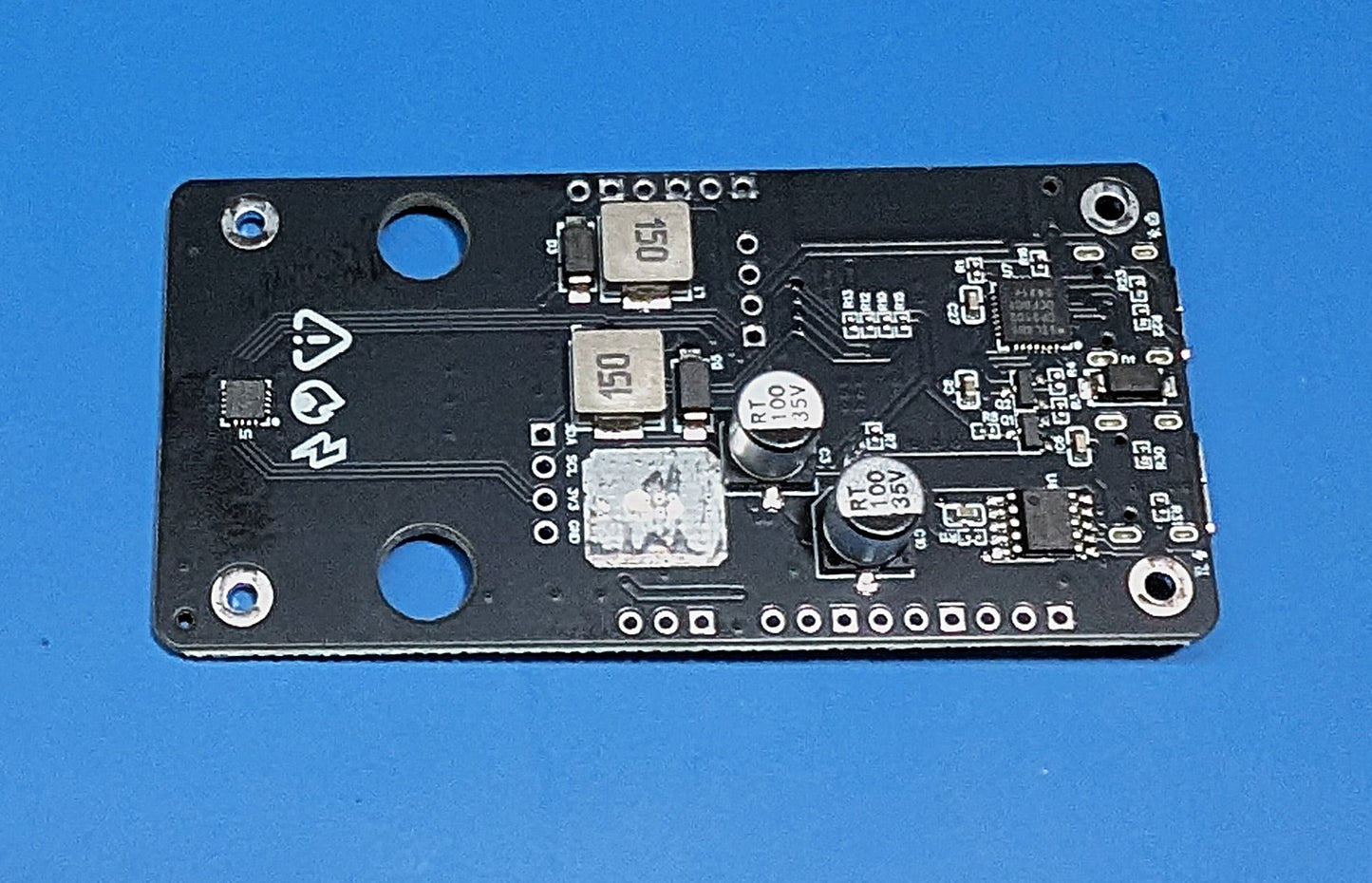

The SSR1PCB is an ESP32-based dev board designed specifically for the SSR1 from TMax.
Integrates a FOC motor driver (compatible with SimpleFOC library), MT6701QT-STD magnetic sensor, up to 100W USB power delivery, OLED header, 5V/12V fan header, and user 5V and 12v rails. The PD rail is additionally broken out. Breakout pins shouldn't source more than 1A each. Additional cooling may be required, 9mm heatsink recommended.

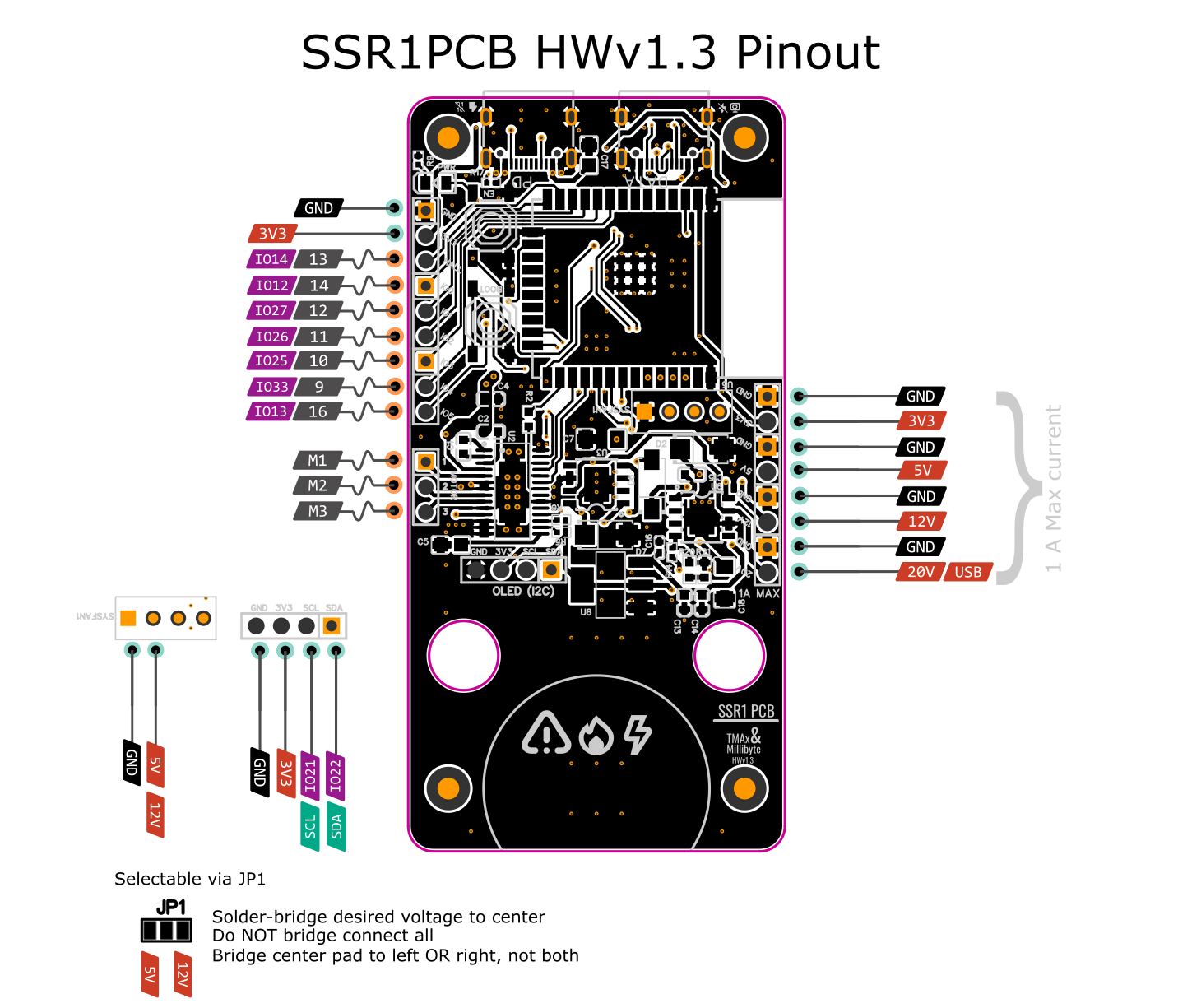

Additionally 5 GPIO lines are exposed to allow additional peripherals to be connected.

A 3 pin DuPont connector is pre-soldered to allow connecting a standard gimbal motor.
A 4 pin CPU fan connector is pre-soldered to allow a 5v or 12v cooling solution. Fan voltage is selectable via a switch on the device.

Disclaimer

This product is an experimental development board that may source dangerous amounts of power. Connect to only certified, 100W rated USB-C power delivery cables and equipment. Users assume all risk associated with operating product.

Documentation: https://github.com/millibyte-products/ssr1pcb

International Shipping

Currently USPS is doing some bait-and-switch with delivery duty-paid. We don't want our customers to receive tracking information, only for the package to be held hostage at customs. At the moment, DHL is the recommended shipping option for non-US addresses.

Customs information

The SSR1PCB is classified as a development board, HS Code 8473.30.11 It is intended for use in general research and development, hobbyist, and DIY applications. These include (but are not limited to 3D Printing, Robotics, and/or electromechanics.
